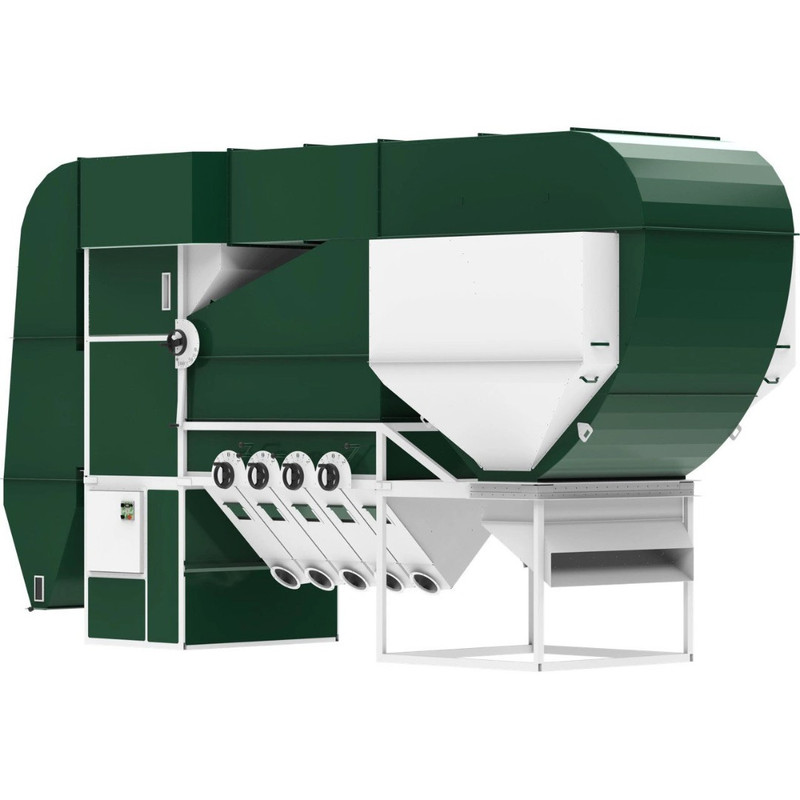

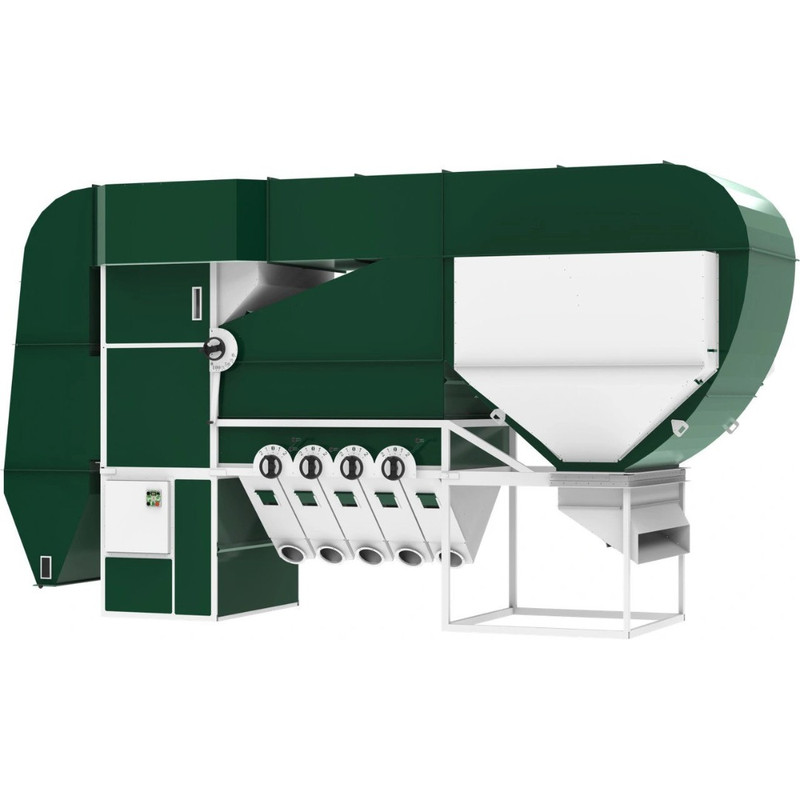

The ISM-150 CSC grain separator is a high-performance grain cleaner specially designed for large farms and processing plants. The device provides efficient grain cleaning, making it indispensable in large-scale production. The ISM-150 CSC can process up to 150 tons of grain per hour, making it ideal for enterprises with significant raw material turnover. The separator can be used both indoors and outdoors, ensuring flexibility in operation. The unique cyclone-sedimentation chamber (CSC) effectively removes dust and small debris, ensuring grain purity and creating comfortable working conditions without polluting the environment. The robust design of the ISM-150 CSC is designed for intensive use, ensuring a long service life and reliable operation. The device does not require frequent replacement of filters or screens, which significantly reduces maintenance and operating costs. The main difference from other machines of this type is the use of an impeller-based power unit.
The use of an impeller on machines of this type offers a number of advantages, such as:
Minimizing airflow power loss.
Reducing electricity consumption by three to four times.
Expanding the functionality of the separator.
Using a frequency converter, which in turn simplifies adjustment.
Increasing the durability of the electric motor.
Cyclone sedimentation chamber – allows the air circulating in the separator to be cleaned of dust and light impurities. The uniqueness of this design lies in the fact that it does not consume additional electricity and works with the separator as a single mechanism.
Advantages of the cyclone sedimentation chamber:
The machine can be installed in enclosed spaces without additional air purification systems.
Energy savings of up to 30% compared to a machine without a CSC.
Combining two units in one machine (separator + cyclone) minimizes energy consumption.
The grain is dried by the warmer air circulating inside the machine.
Dust and debris fall into a special tray.
Improved noise insulation (noise level reduced from 87 dB to 57 dB).
Simple design and operation.
Principle of operation:
The principle of operation of the ISM-150 CSC aerodynamic grain separator is based on the separation of the material being separated in an air stream. Primary cleaning and preparation of the seed material is carried out based on the mass and buoyancy of the crop, which makes it possible to separate grain with high sowing qualities. The initial material (grain) is fed into the receiving bin, where it is distributed over its entire width under its own weight and enters the separation chamber in a uniform flow. Thanks to the powerful laminar air flow, heavy impurities and stones are first sifted out and fall into the first fraction. The seed grain falls into the second and third trays. The fourth and fifth trays are used for commercial grain. Non-grain impurities, all damaged and split grains are carried away by the air flow into the sixth and seventh trays. The air circulating in the separator is cleaned, and dust and light impurities exit through a special tray.
