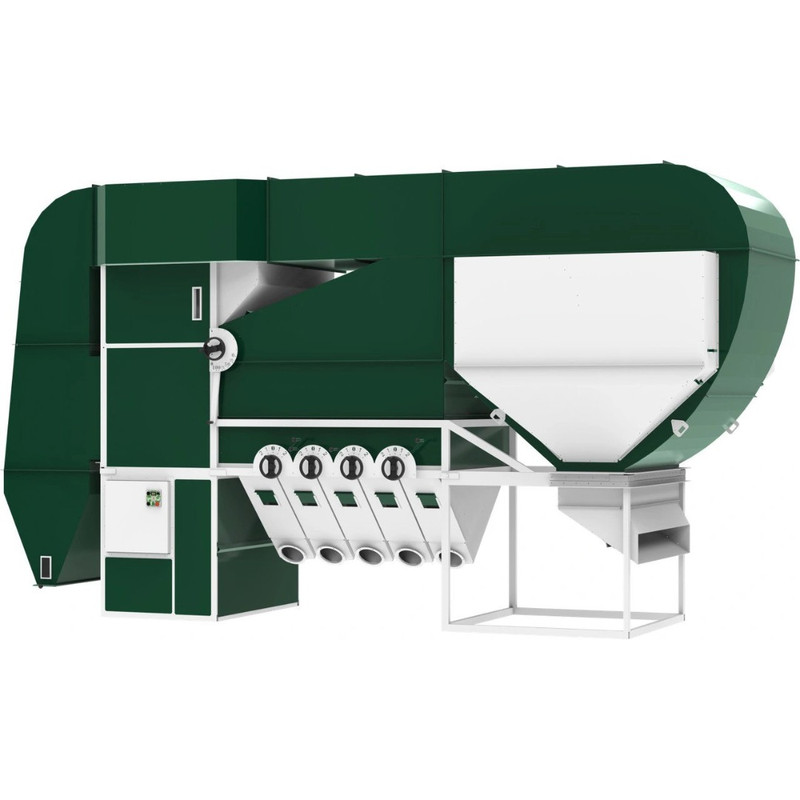

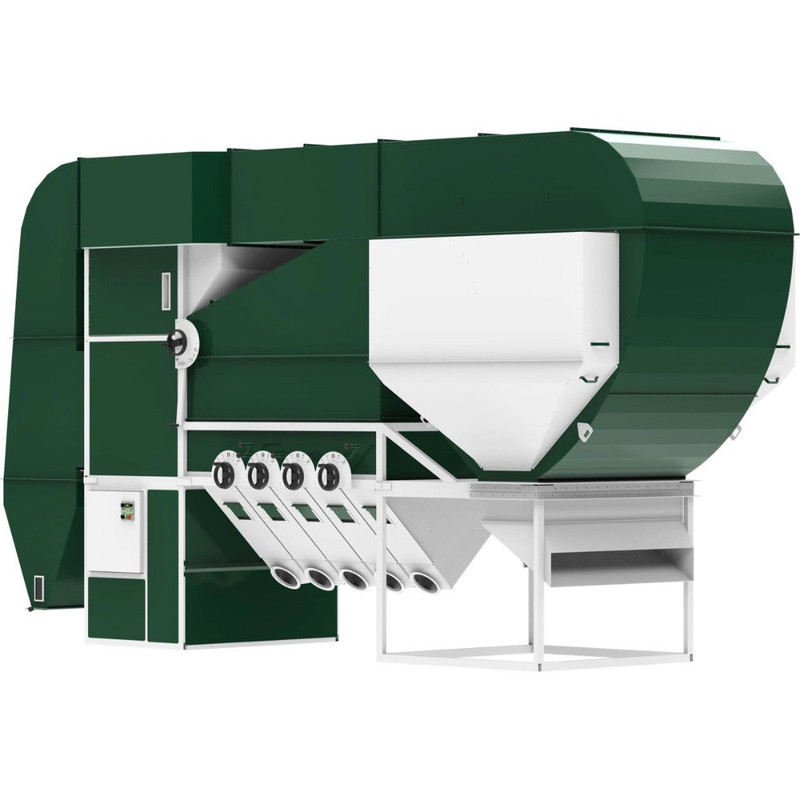

The ISM-200 CSC grain separator is used in large factories and elevators for efficient and high-quality processing of grain and other bulk materials. Cleaning is carried out using an air flow, which completely eliminates damage to the grain and prevents losses. Thanks to the innovative cleaning system implemented in the ISM-200 CSC, seed germination is significantly increased (up to almost 98%) and yield increases by 30%. Its robust construction and versatility make it a reliable choice for intensive work. The separator is ideal for enterprises with high requirements for grain processing quality and environmental protection. The main difference from other machines of this type is the use of a power unit based on an impeller.
The use of an impeller on machines of this type offers a number of advantages, such as:
Minimizing airflow power loss.
Reducing electricity consumption by three to four times.
Expanding the functionality of the separator.
Using a frequency converter, which in turn simplifies adjustment.
Increasing the durability of the electric motor.
Cyclone sedimentation chamber – allows the air circulating in the separator to be cleaned of dust and light impurities. The uniqueness of this design lies in the fact that it does not consume additional electricity and works with the separator as a single mechanism.
Advantages of the cyclone sedimentation chamber:
The machine can be installed in enclosed spaces without additional air purification systems.
Energy savings of up to 30% compared to a machine without a CSC.
Combining two units in one machine (separator + cyclone) minimizes energy consumption.
The grain is dried by the warmer air circulating inside the machine.
Dust and debris fall into a special tray.
Improved noise insulation (noise level reduced from 87 dB to 57 dB).
Simple design and operation.
Principle of operation:
The principle of operation of the ISM-200 CSC aerodynamic grain separator is based on the separation of the material being separated in an air stream. Primary cleaning and preparation of the seed material is carried out based on the mass and buoyancy of the crop, which makes it possible to separate grain with high sowing qualities. The initial material (grain) is fed into the receiving bin, where it is distributed over its entire width under its own weight and enters the separation chamber in a uniform flow. Thanks to the powerful laminar air flow, heavy impurities and stones are first sifted out and fall into the first fraction. The seed grain falls into the second and third trays. The fourth and fifth trays are used for commercial grain. Non-grain impurities, all damaged and split grains are carried away by the air flow into the sixth and seventh trays. The air circulating in the separator is cleaned, and dust and light impurities exit through a special tray.
