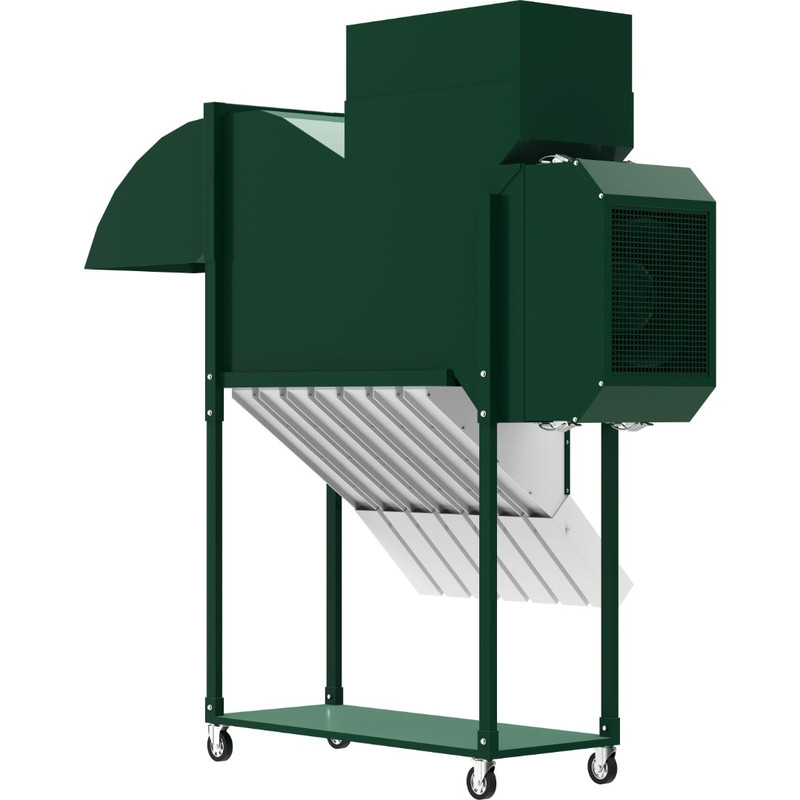

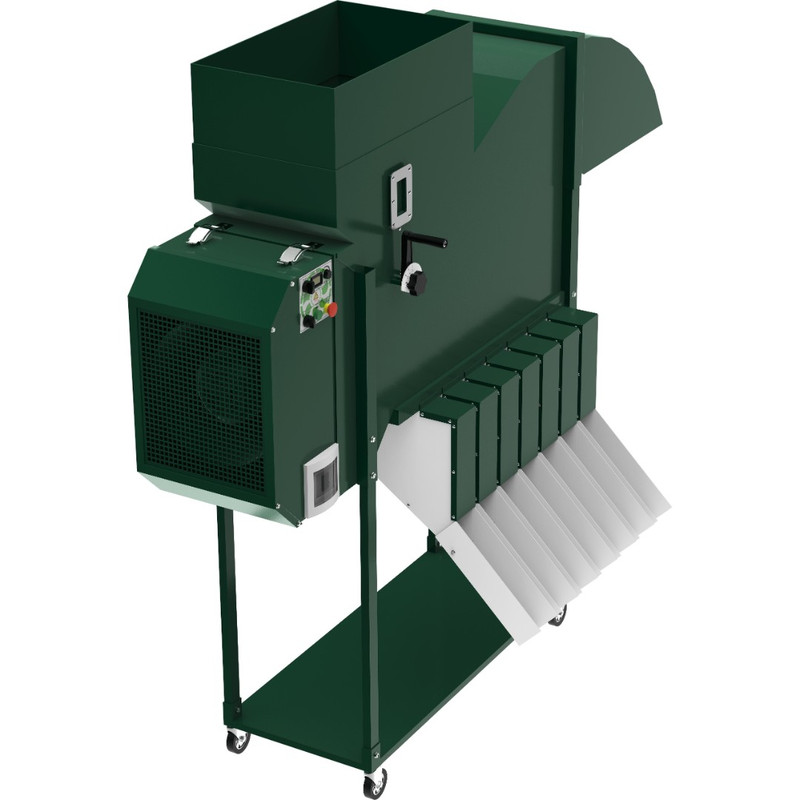

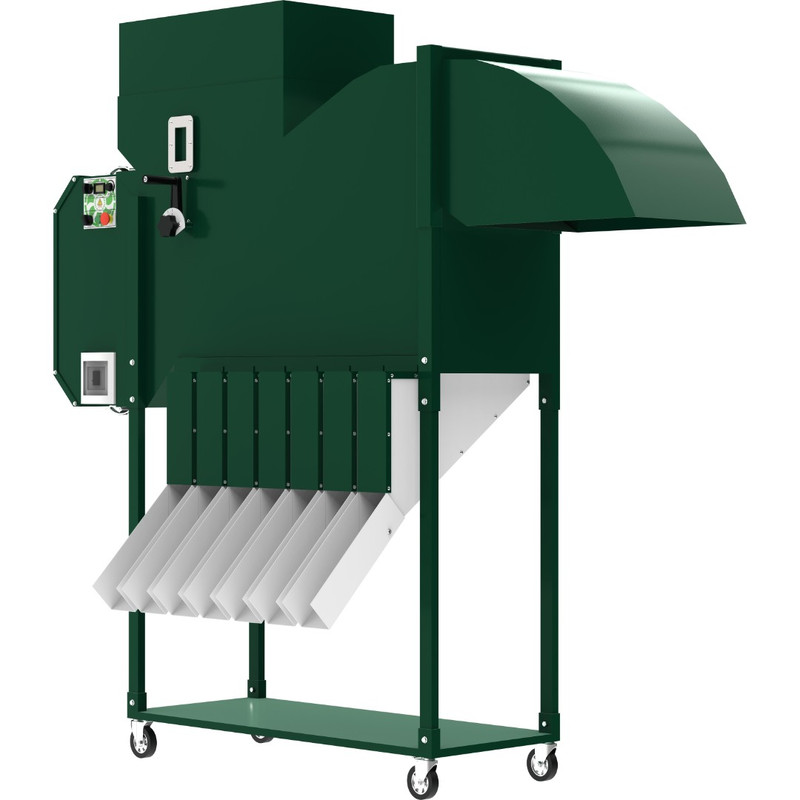

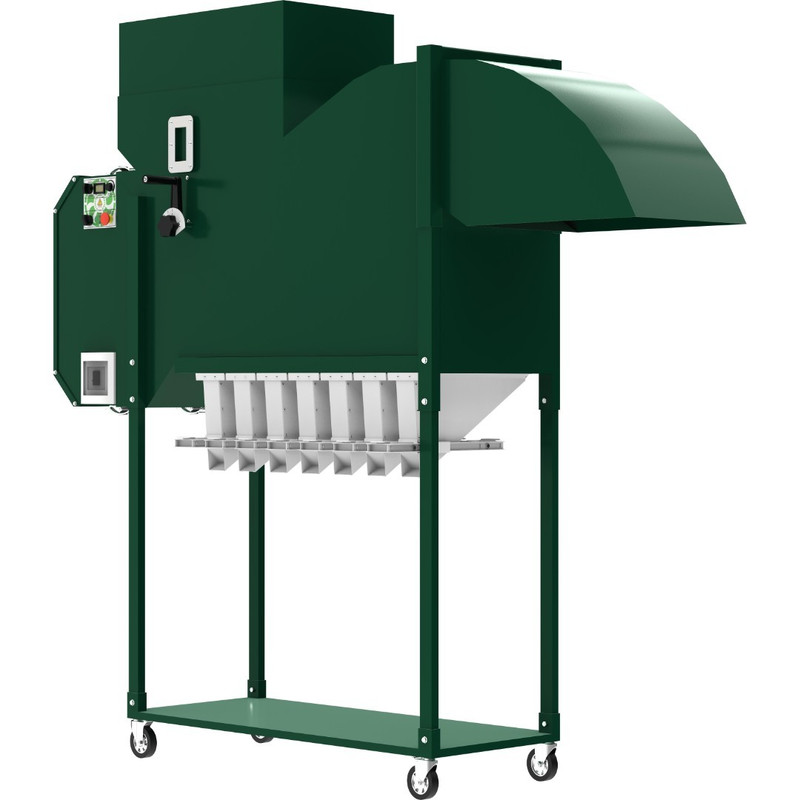

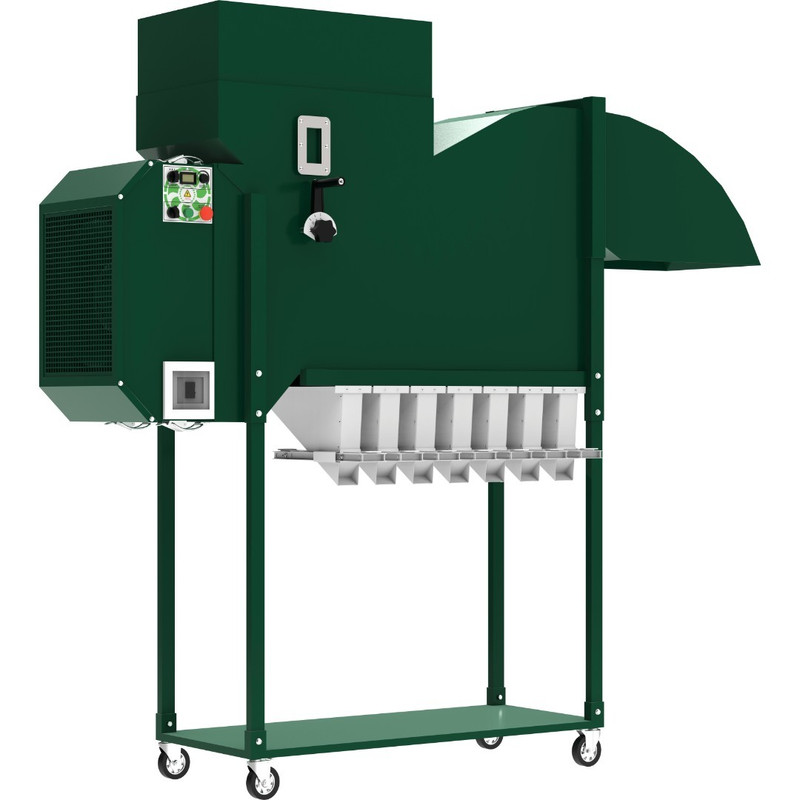

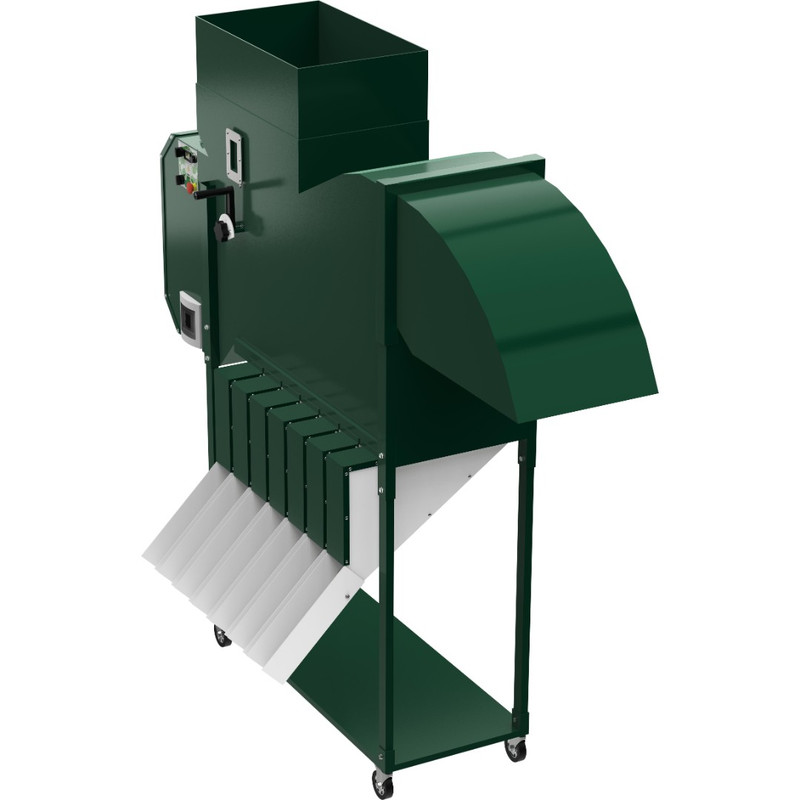

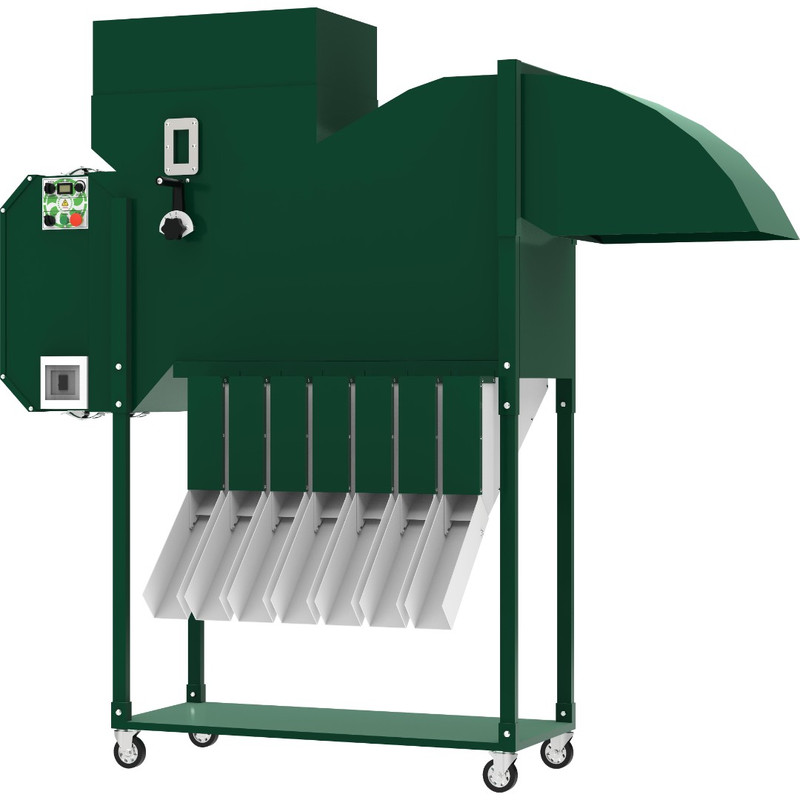

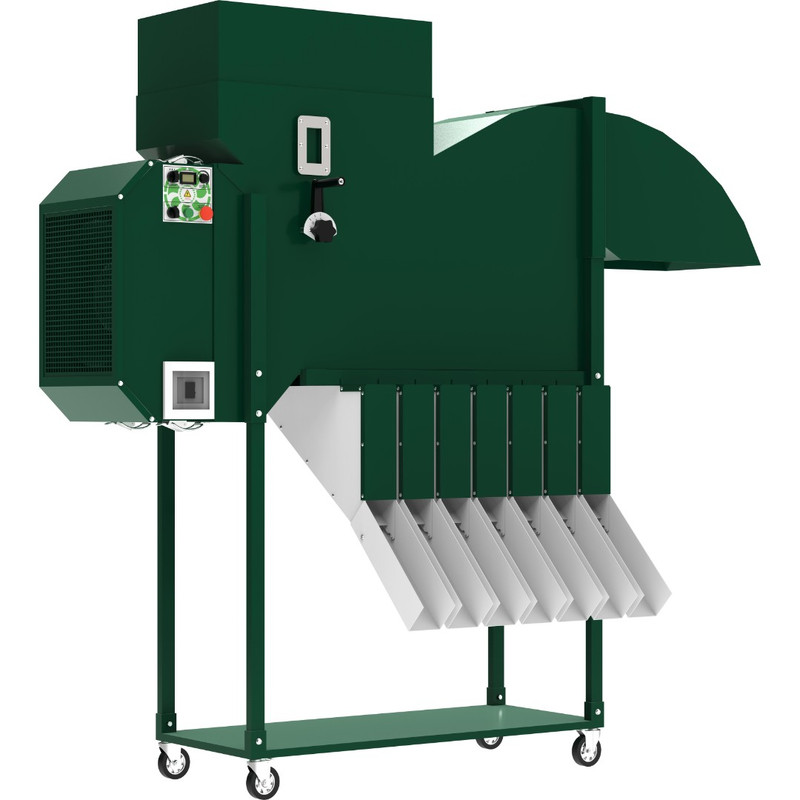

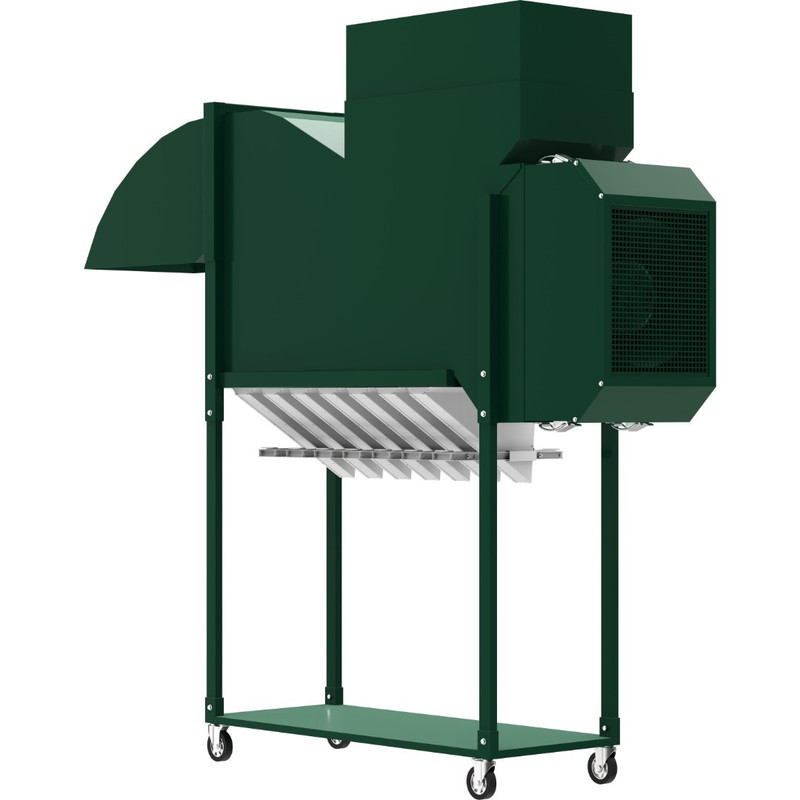

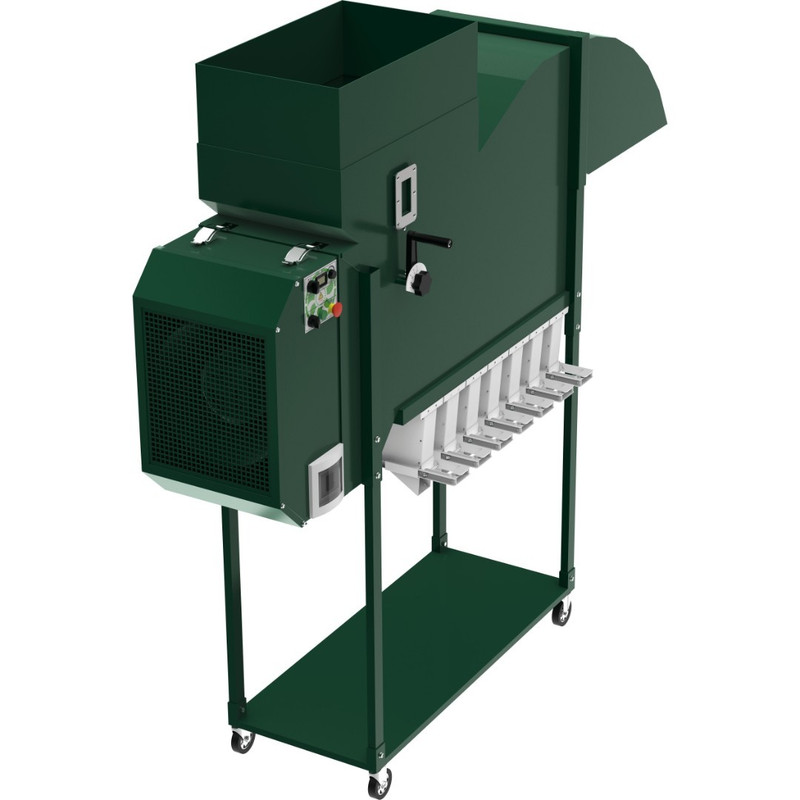

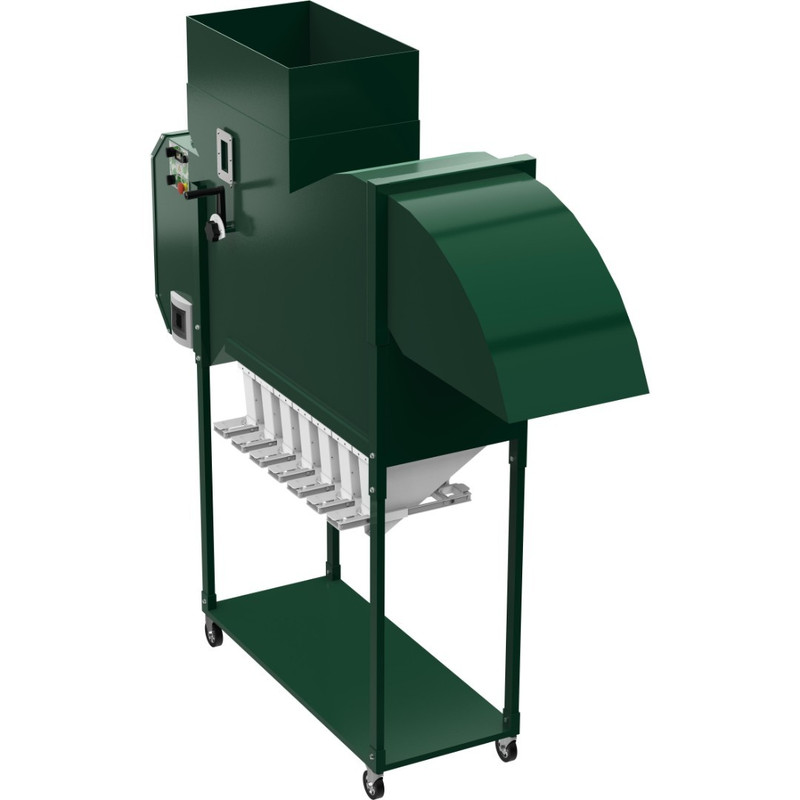

Grain separator ISM-5

Grain separator ISM-5

One of the most popular models of our company among farms is grain separator ISM-5. This is a unique unit that combines small size and low power consumption with high productivity and quality of cleaning. This technique will help the agrarian and prepare the seed material, thus increasing the yield up to 30%, which will lead to high germination of seeds up to 98%. Aerodynamic grain separator ISM-5 is able to work on all grains, legumes, vegetables, melons, forage crops, as well as all kinds of bulk mixtures. Grain separator ISM-5 for small and private farms. The main difference from other machines of this type is the use of a power plant based on an impeller.

The use of an impeller on this type of machine provides a number of advantages such as:

• Minimize the loss of airflow power.
• Reduce electrical consumption by a factor of three to four.
• Expand the functionality of the separator.
• Apply a frequency converter, which in turn simplifies regulation.
• Increase the durability of the motor.
• The separator is equipped with bag holder plates to secure the bags under the trays.

Advantages of the separator:

• Produces separation of grain mixtures.
• Frequency converter allows to work in different modes (smooth start and stop, easy adjustment of air flow power, protection against voltage instability, reverse mode for self-cleaning of the machine).
• Quick changeover from crop to crop.
• The absence of a vibrating chute eliminates traumatization of grain during operation.
• Does not require complex maintenance.
• Simple design and reliability of the machine as a whole.
• No lubrication points or replaceable elements.

Operating principle:

The feed material (grain) is fed into the receiving hopper, where it is distributed under its own weight over its entire width and flows evenly into the separation chamber. Due to the powerful laminar air flow, heavy impurities and stones are first of all separated and fall out into the first fraction. The sown grain falls into the second and third troughs. The fourth and fifth troughs are used for marketable grain. Non-grain impurities, all damaged and sectioned grains are carried away by the air flow into the sixth and seventh troughs, and light impurities and dust together with the exhaust air are discharged through the separator air duct.
Calibration and preparation of the seed is carried out by dividing the crop by weight and sailing, which makes it possible to select the most complete grain (with a higher weight) and thus guarantees the presence of a healthy germ part in the grain. This ensures a high germination rate. It reduces the amount of planting material and increases yields.
Primary cleaning is designed to remove dust and partial removal of non-grain waste, which allows to quickly prepare the grain for temporary storage before further processing.
