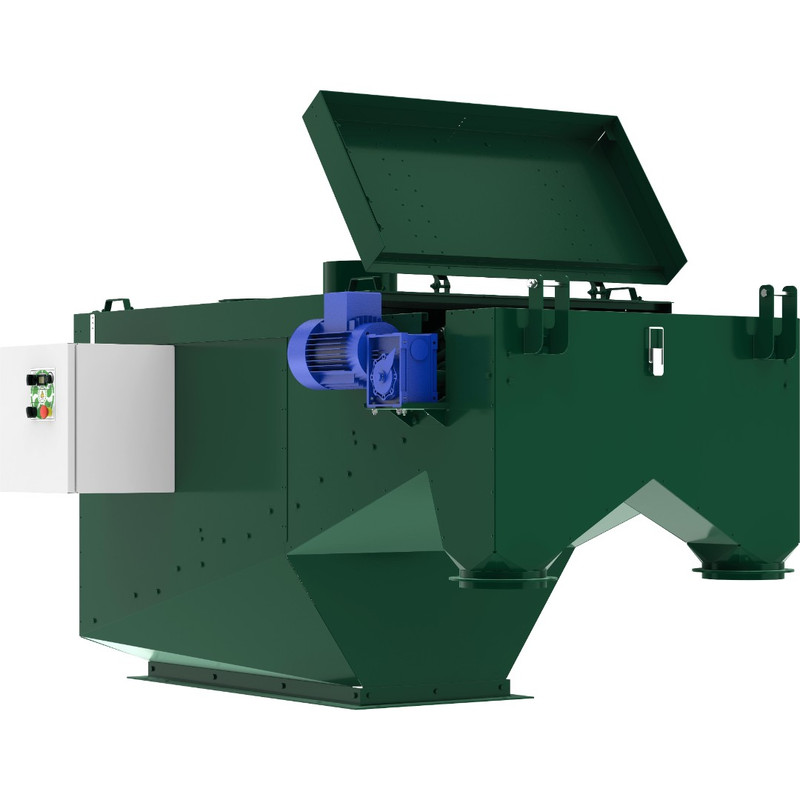

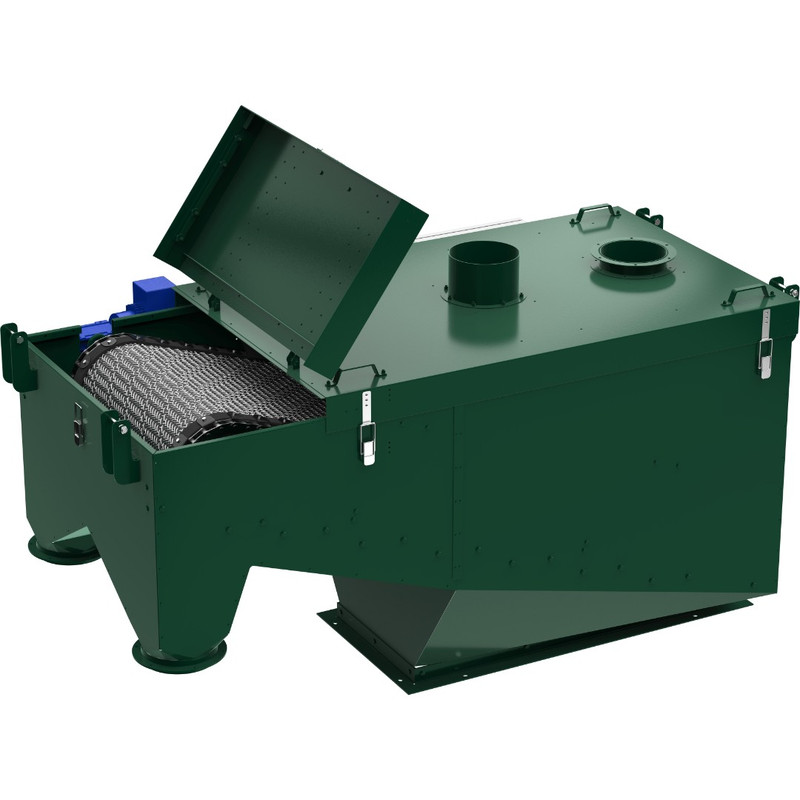

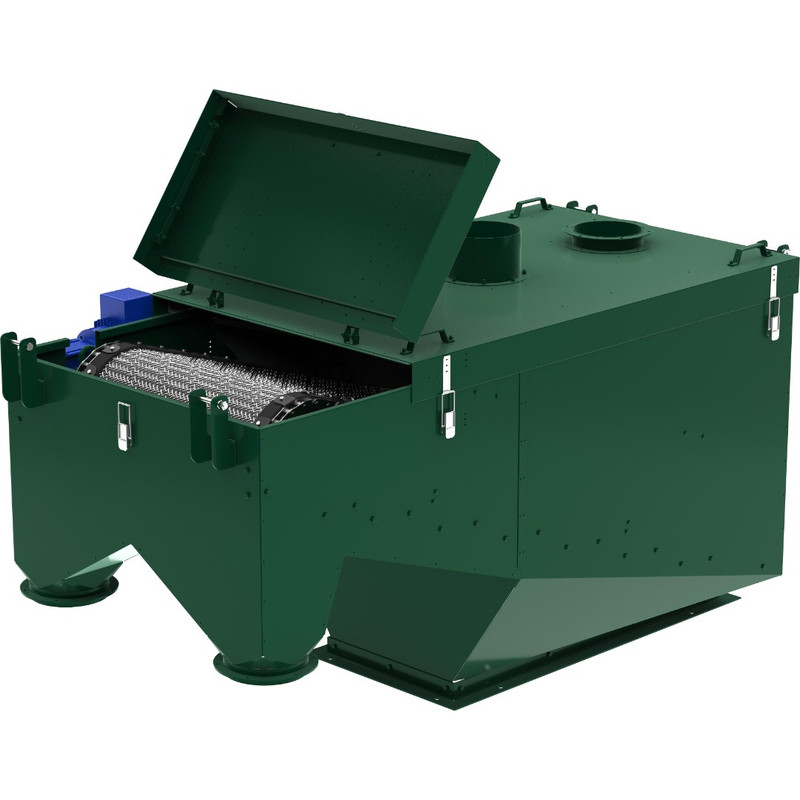

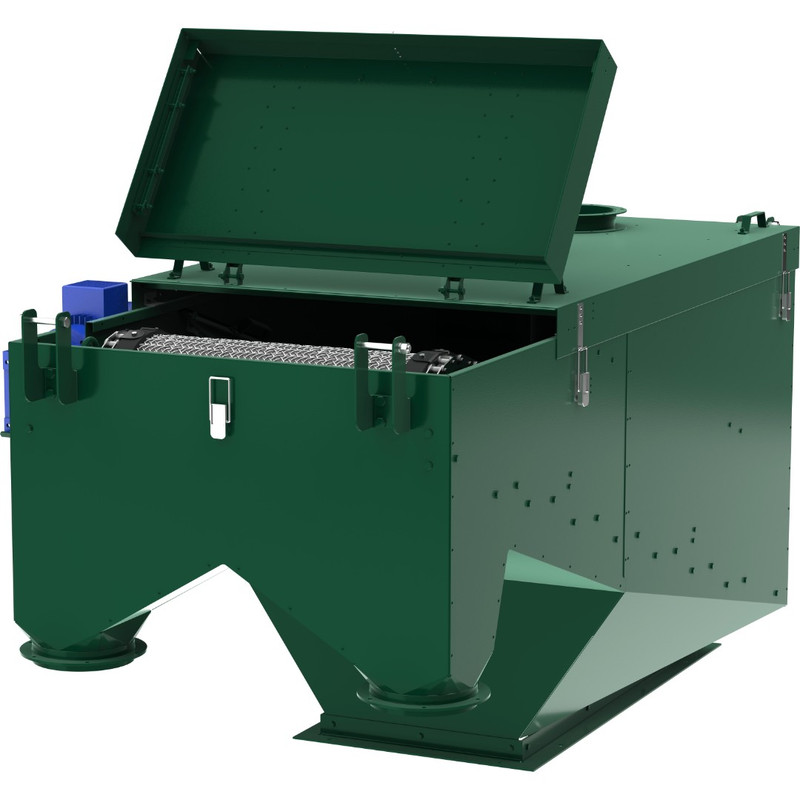

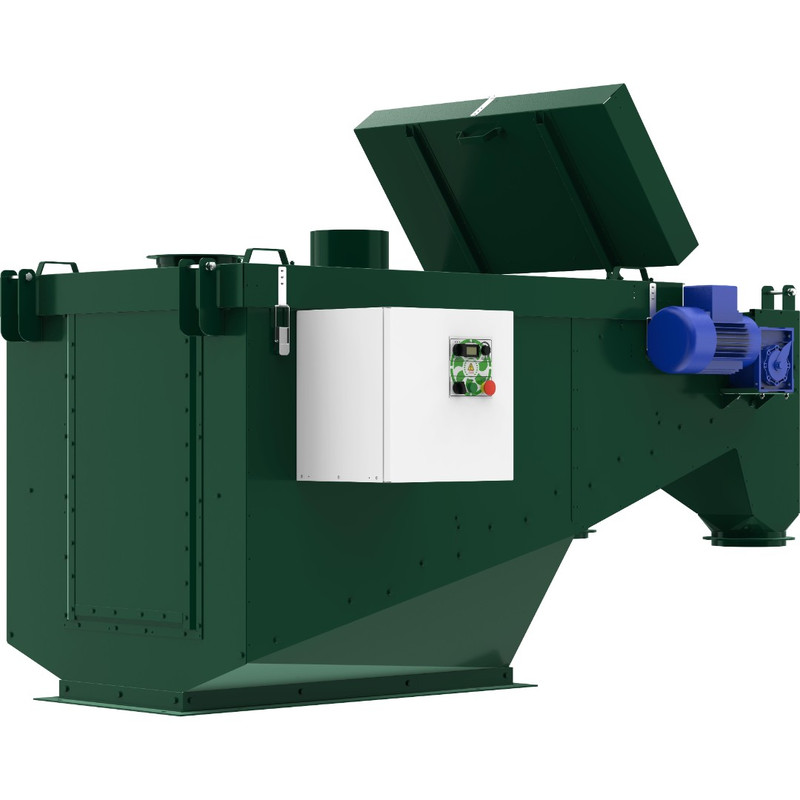

The preliminary cleaning unit is designed for preliminary cleaning and separation of large fractions from the general mass of grain, legumes, vegetables, and melons, as well as all kinds of loose mixtures.The PCU consists of a hopper with a rotating calibration screen installed inside it. The screen is mounted on a removable frame and is driven by a gear motor. The rotation speed is controlled by a frequency converter.
The pre-cleaning unit makes ISM separators universal equipment for grain cleaning.
Features:
The grain pre-cleaning unit is a hopper with a rotating calibration screen installed inside it. The screen is fixed to a removable frame and driven by a gear motor. The rotation speed is controlled by a frequency converter. The grain cleaning and preparation unit can be used together with the ISM grain separator, which allows you to achieve virtually perfect grain cleaning results with any level of impurity in just one pass.
Principle of operation:

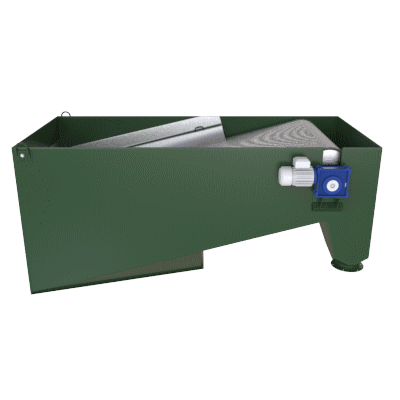

The unit works by separating the grain from the chaff by shaking it through a mesh screen with cells of a certain size. Initially, the grain falls onto the lower part of the screen, after which it continues to move upward until it falls through. Large debris that does not pass through the mesh falls into receiving hoppers for discharge into a waste bunker or a cyclone-sedimentation chamber. The grain then enters the receiving hopper of the ISM separator or another receiving device for further transportation or processing. The APO can operate independently or in conjunction with an ISM or SOK separator. The use of a pre-cleaning unit will allow you to achieve perfect results in cleaning grain of any impurity level in just one pass.
Characteristics:
| Performance: | up to 50 tons/hour |
| Electricity consumption: | 1 kW/hour, 400 V |
| Length: | 2200 mm |
| Width: | 1300 mm |
| Height: | 1150 mm |
| Weight: | 500 kg |
