The vibrating screen is designed to separate large debris from the total grain mass. It effectively removes large debris such as straw, stones, and other foreign matter, preparing the grain for further processing.
The versatility of the vibrating screen lies in its flexibility:

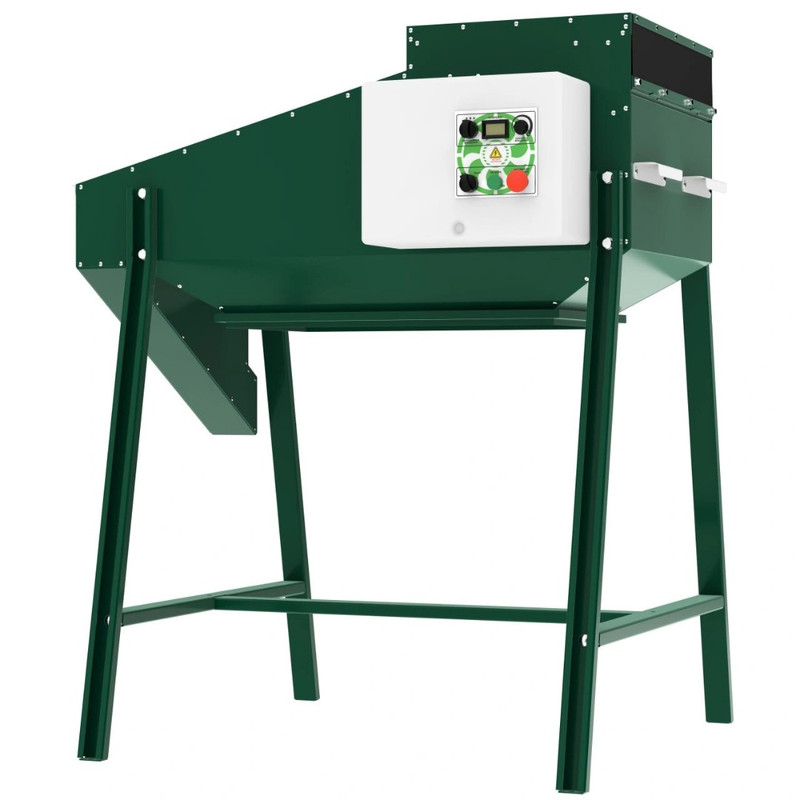

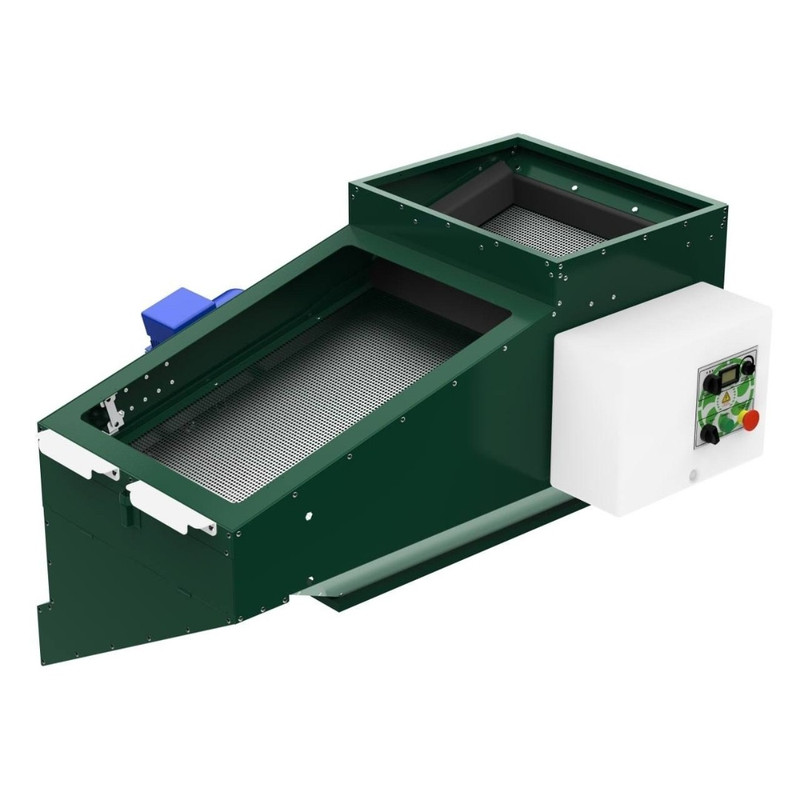

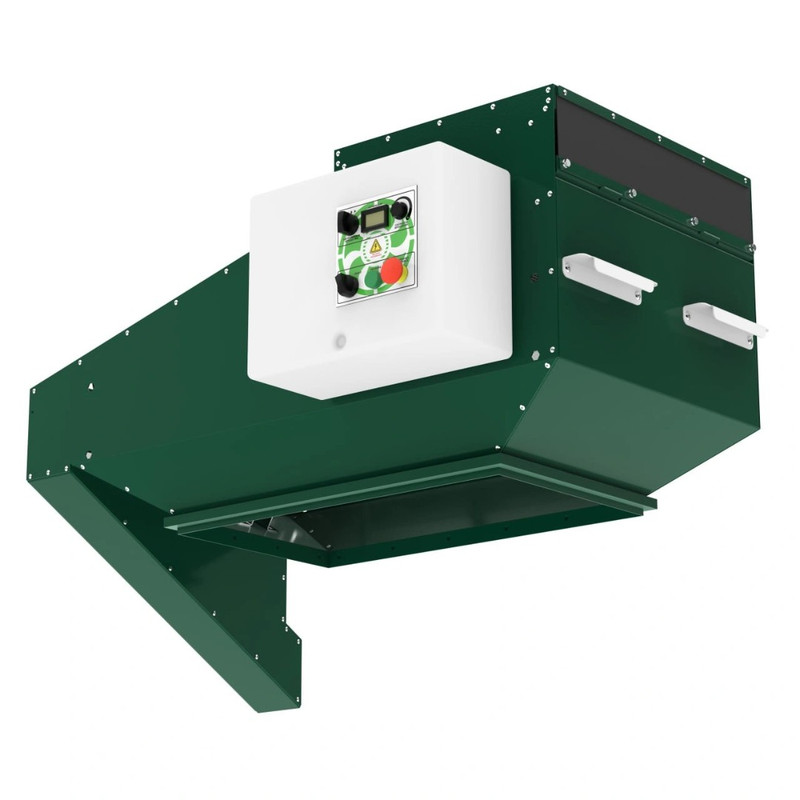

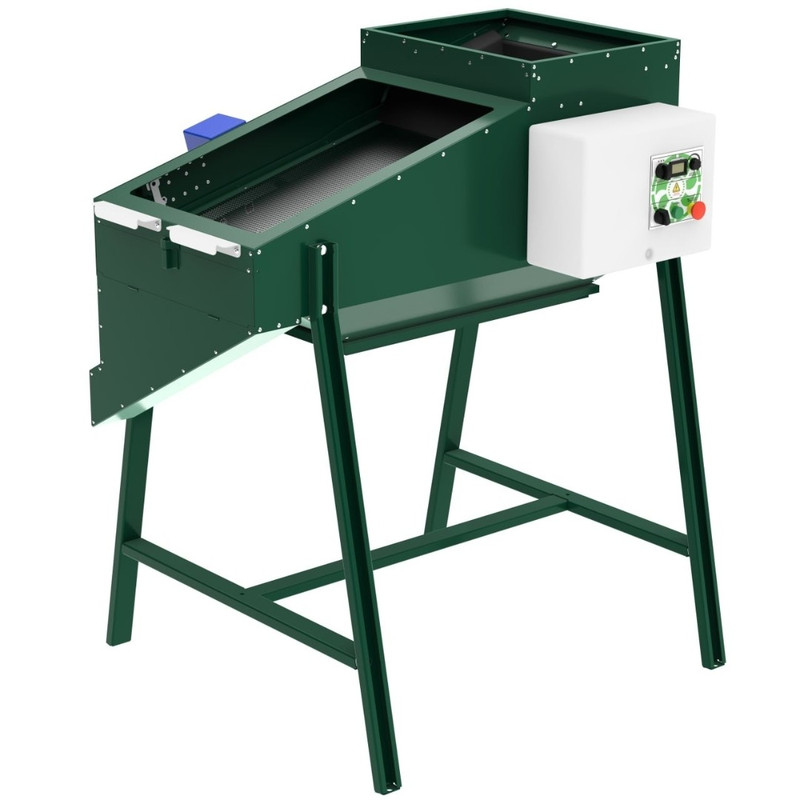

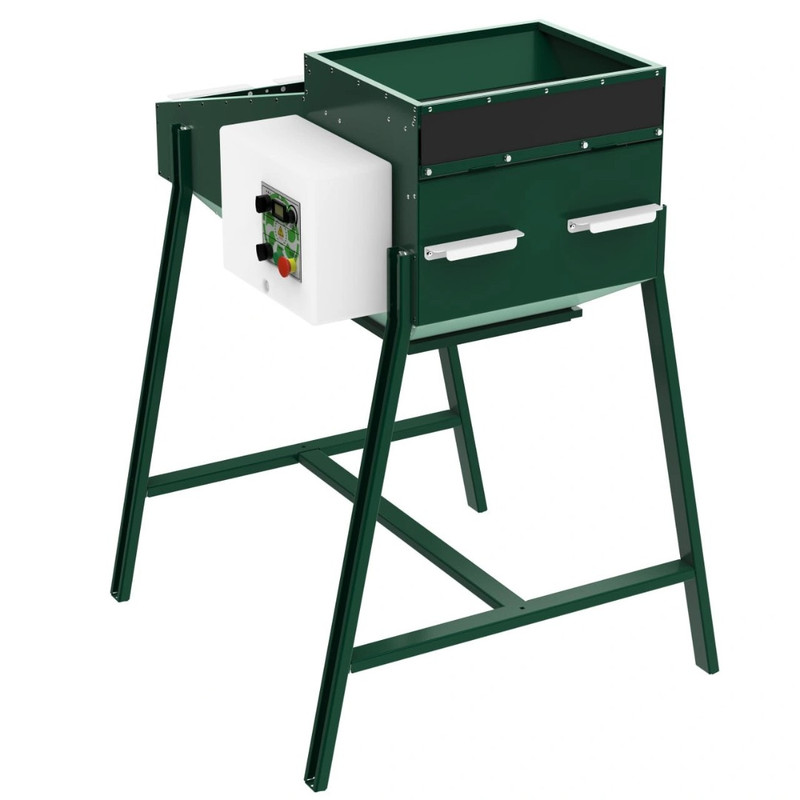

The unit is equipped with a movable frame with a calibrated screen
The screen is mounted on a frame that can be easily removed for replacement or cleaning.
The frame is driven by a gear motor that provides reciprocating motion.
The frequency of movement is regulated by a frequency converter, which allows the machine to be adapted to different conditions.
Large impurities (stones, straw) remain on the surface of the screen and are removed to a special waste hopper.
The cleaned material passes through the screen and is directed to the receiving hopper for further processing.
The raw material is fed onto the moving screen with a small amplitude of oscillation and high speed.
During the movement of the screen, the grain is separated according to specific sizes.
The device can be used as a stand-alone unit or as an additional unit in combination with ISM3, ISM5, and ISM10 aerodynamic separators.
Regardless of the selected operating mode, the vibrating screen guarantees high-quality separation of large debris, ensuring the purity and safety of your grain.
